Backpropagation Example: A Step-by-Step Guide

Understanding Gradient Computation in Computational Graphs

Introduction to Backpropagation

Backpropagation is a key algorithm for training neural networks and computing gradients in computational graphs. This guide walks through the gradient computation of a simple problem using a computational graph and backpropagation.

Partial Differential Calculus Rules

1. Addition Rule:

   For a sum of variables, used for \(u^{(3)}=u^{(1)} + u^{(2)}\) below.

\[\frac{\partial (x + y)}{\partial x} = 1, \quad \frac{\partial (x + y)}{\partial y} = 1\]

2. Power Rule:

   For a variable raised to a power, used for \(u^{(4)} = u^{(3)^2}\) with \(n=2\) below.

\[\frac{\partial (x^n)}{\partial x} = n \cdot x^{n-1}\]

3. Sine Rule:

   For the sine of a variable, used for \(u^{(5)} = \sin(u^{(4)})\) below.

\[\frac{\partial (\sin(x))}{\partial x} = \cos(x)\]

4. Chain Rule:

   For a composition of functions, used to propagate gradients backward through the computational graph.

\[\frac{\partial f(g(x))}{\partial x} = \frac{\partial f}{\partial g} \cdot \frac{\partial g}{\partial x}\]

Problem Overview

Objective: Compute the gradient \(\frac{\partial u^{(5)}}{\partial u^{(1)}}\) using back propagation:

Computational Graph:

• Nodes: \(u^{(1)}, u^{(2)}, u^{(3)}, u^{(4)}, u^{(5)}\)

• Operations:

  • \(u^{(3)}=u^{(1)} + u^{(2)}\)

  • \(u^{(4)} = u^{(3)^2}\)

  • \(u^{(5)} = \sin(u^{(4)})\)

Computational Graph Diagram

1. Additive Components:

• \(u^{(3)} = u^{(1)} + u^{(2)}\): This operation is purely additive, combining the values of \(u^{(1)}\) and \(u^{(2)}\).

2. Multiplicative Components:

• \(u^{(4)} = u^{(3)^2}\): This operation introduces a multiplication by squaring the value of \(u^{(3)}\), which can be interpreted as \(u^{(3)} \cdot u^{(3)}\).

• During backpropagation, the gradient computation for \(u^{(4)}\) involves multiplying \(2\) with \(u^{(3)}\) as per the derivative rule \(\frac{\partial u^{(4)}}{\partial u^{(3)}} = 2 \cdot u^{(3)}\).

3. Combination During Backpropagation:

• The gradients for \(u^{(4)}\) and \(u^{(3)}\) are combined multiplicatively with their respective upstream gradients as the backpropagation traverses the graph.

Defining Operations and Gradients

Operation 1: \(u^{(3)} = u^{(1)} + u^{(2)}\)

• Forward: \(u^{(3)} = u^{(1)} + u^{(2)}\)

• Gradient:

  • \(\frac{\partial u^{(3)}}{\partial u^{(1)}} = 1\)

  • \(\frac{\partial u^{(3)}}{\partial u^{(2)}} = 1\)

Operation 2: \(u^{(4)} = u^{(3)^2}\)

• Forward: \(u^{(4)} = u^{(3)^2}\)

• Gradient:

  • \(\frac{\partial u^{(4)}}{\partial u^{(3)}} = 2 \cdot u^{(3)}\)

Operation 3: \(u^{(5)} = \sin(u^{(4)})\)

• Forward: \(u^{(5)} = \sin(u^{(4)})\)

• Gradient:

  • \(\frac{\partial u^{(5)}}{\partial u^{(4)}} = \cos(u^{(4)})\)

Step-by-Step Gradient Composition

Step 1: Initialization

• Start with the forward pass:

  • \(u^{(1)} = 4\)

  • \(u^{(2)} = 2\)

  • \(u^{(3)} = u^{(1)} + u^{(2)} = 6\)

  • \(u^{(4)} = u^{(3)^2} = 36\)

  • \(u^{(5)} = \sin(u^{(4)}) = \sin(36)\)

• Initialize the seed gradient:

  grad_table \([u^{(5)}] = 1\)

---

Step 2: Backpropagation

1. At \(u^{(5)}\):

   grad_table \([u^{(4)}] = \cos(u^{(4)}) \cdot\) grad_table \([u^{(5)}]\)

2. At \(u^{(4)}\):

   grad_table \([u^{(3)}] = (2 \cdot u^{(3)}) \cdot\) grad_table \([u^{(4)}]\)

3. At \(u^{(3)}\):

grad_table \([u^{(1)}] = 1 \cdot\) grad_table \([u^{(3)}]\)

Final Gradient Computation

Results

1. grad_table\([u^{(5)}] = 1\)

2. grad_table\([u^{(4)}] = \cos(36) \cdot 1\)

3. grad_table\([u^{(3)}] = (2 \cdot 6) \cdot \cos(36)\)

4. grad_table\([u^{(1)}] = 1 \cdot (12 \cdot \cos(36))\)

Final Answer:

\(\frac{\partial u^{(5)}}{\partial u^{(1)}} = 12 \cdot \cos(36)\)

Complete Calculation:

\(V\)	\(C\)	\(\text{op}\)	\(\frac{dC}{dV}\)	\(\text{inputs}\)	\(\frac{dC}{dV} (\text{inputs})\)	\(G\)
\(u^{(4)}\)	\(u^{(5)}\)	\(\sin(u^{(4)})\)	\(\cos(u^{(4)})\)	\(u^{(4)} = 36\)	\(\cos(36)\)	\(\cos(36)\)
\(u^{(3)}\)	\(u^{(4)}\)	\(u^{(3)^2}\)	\(2 \cdot u^{(3)}\)	\(u^{(3)} = 6\)	\(2 \cdot 6 = 12 \cdot \cos(36)\)	\(12 \cdot \cos(36)\)
\(u^{(1)}\)	\(u^{(3)}\)	\(u^{(1)} + u^{(2)}\)	\(1\)	\(u^{(1)} = 4, u^{(2)} = 2\)	\(1 \cdot (12 \cdot \cos(36))\)	\(12 \cdot \cos(36)\)
\(u^{(1)}\)	\(-\)	\(u^{(1)} \text{ (input)}\)	\(1\)	\(-\)	\(12 \cdot \cos(36)\)	\(12 \cdot \cos(36)\)

Explanation:

• \(V\): The node for which the gradient is computed.

• \(C\): The consumer node that depends on \(V\).

• \(\text{op}\): The operation at the consumer node.

• \(\frac{dC}{dV}\): Local gradient of \(C\) with respect to \(V\).

• \(\text{inputs}\): Inputs to the consumer node.

• \(\frac{dC}{dV}(\text{inputs})\): Gradient contribution to \(V\) from this consumer.

• \(G\): Total gradient for \(V\).

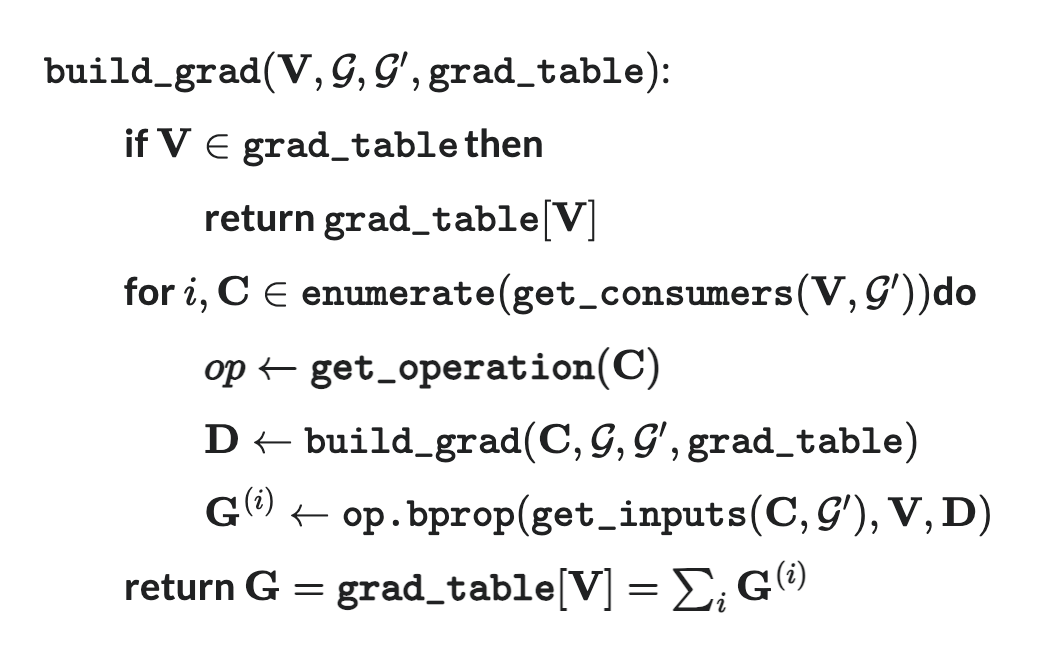

Definition

⬇️

def compute_grad(V, graph, grad_table):
    if V in grad_table:
        return grad_table[V]

    grad_sum = 0
    for child, operation in graph[V]:
        grad_input = compute_grad(child, graph, grad_table)
        grad_sum += operation.bprop(child, grad_input)

    grad_table[V] = grad_sum
    return grad_sum

• Input: Node \(V\), graph structure, and gradient table.

• Process:

  1. If \(V\) has already been computed, return its value.

  2. For each child node of \(V\):

     • Compute gradient recursively.

     • Backpropagate the gradient using the operation’s backward function.

  3. Store the computed gradient in grad_table\([V]\).

• Output: Gradient value for \(V\).
